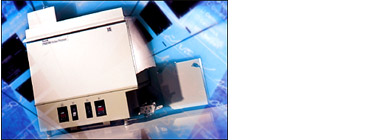

Refurbished - Kodak Prostar Microfilm Processor for 16mm & 35mm Roll Film

List Price: $26,000.00
Your Price: $18,700.00
Item Number: Kodak ProStar Pocessor
Manufacturer: Kodak (EPM)
Manufacturer Part No: 832-0194

  • Quality *Refurbished Kodak Prostar Processor

We refurbish these processors upon order, so there will be a 2 week lead time prior to shipping the product.

Start With Automatic Threading. Finish With Archival Quality.

With the Archive Processor, you don't need a film specialist to get predictable, high-quality results. It incorporates the latest in digital monitors and controls, rapid-recovery, energy-saving stand-by cycles, and an environment-friendly anti-siphon water supply. The Archive Processor provides precisely controlled film processing with minimal operator training or experience. Simply attach film to the self-threader and insert it into the drive rollers. In less than a minute, dry, processed film begins exiting the machine. Upon completion of a roll, the Archive Processor automatically cycles into a money-saving energy-conservation mode.

Table Top Processing That Fits Where You Want it.

Its room-light loading and tabletop size permit you to use the Archive Processor virtually anywhere. Plus, there's no mixing, no mess, and no fuss, because Kodak Prostar Plus Chemicals come premixed in disposable plastic containers and are ready to use. You gain the added security and control of in-house processing without the expense of a darkroom. For added convenience, parts that require periodic replacement, such as air filters, can be replaced in seconds by an operator.

The Kodak Prostar Archive Processor is ruggedly built for long life and reliability and is backed by warranties and service from Kodak.

Just as important is the integrity of your microfilm. When properly operated, the Kodak Prostar Archive Processor meets all applicable international standards for archival quality. Because film is available in less than a minute and you need not leave your office, the security of your private records and confidential information is safeguarded.

Plus, when you use Kodak Microfilm, you're protected by the Kodak Disaster Recovery Program at no additional charge.

  • Room light operation
  • One-minute film turnaround time
  • Ease of use (with self-threading film)
  • Small footprint (tabletop size)
  • No mess (with premixed Kodak chemicals)
  • Security and confidentiality for your documents, with in-house processing


  • 10 feet (3 meters)/minute

Water Requirements

  • Temperature: 96 degrees F +/- 2 degrees (36.5 degrees C +/- 1.5 degrees)
  • Flow rate: 0.5 gallons/minute (1.9 L/minute)
  • Drain rate: 6.0 gallons/minute (22.7 L/min)
  • (Hoses for water supply and drain are included.)

Electrical Requirements

  • 120 V AC 60 Hz (UL marked for U.S. and Canada) (50 Hz available with simple field modification)

Electrical Use

  • Standby mode: 100-200 Watts
  • Operational mode: 600-1000 Watts
  • Warm-up mode: 1400 Watts

Chemical Capacity

  • 44 fl. oz. (1.3 L) of KODAK Prostar Plus Developer
  • 44 fl. oz. (1.3 L) of KODAK Prostar Plus Fixer
  • Without replenishment will process up to 3000 feet (900 m) of 16mm microfilm
  • With replenishment will process up to 18000 feet (5000 m) of 16mm microfilm

Physical Dimensions

  • Height: 31 inches (79 cm)
  • Height when open: 36 inches (91 cm)
  • Depth: 16 inches (41 cm)
  • Depth when open: 24 inches (61 cm)
  • Length: 39 inches (99 cm)
  • Weight, empty: 115 lbs. (52 kg)
  • Weight, operational: 140 lbs. (64 kg)


  • KODAK PROSTAR Chemical Replenisher Unit (CAT 809 0755)
  • KODAK PROSTAR Cabinet (CAT 144 4256)
  • KODAK Thermostatic Mixing Valve (CAT 142 3698)
  • KODAK PROSTAR 16mm Self-Threader (CAT 199 0993)
  • KODAK PROSTAR 16mm Dual Strand Self-Threader (CAT 146 5194)
  • KODAK PROSTAR 35mm Self-Threader (CAT 199 1009)

* Refurbishment consists of cleaning, lubrication, adjusting and the replacement of worn parts as deemed neccessary by trained technicians in order to bring the product up to a production ready status. Refurbished units may be low usage units that require little in terms of parts replacement, or highly used units that require complete disassembly and rebuilding. Call for more information it you have questions.

Additional Information

Kodak Brochure
